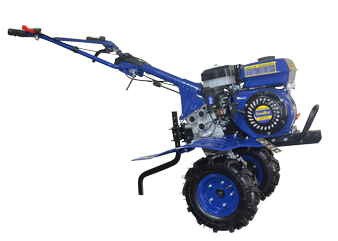

Petrol Intercultivator FB-IC-209P
Petrol Intercultivator FB-IC-209P
Regular price
Rs. 35,624.00
Regular price
Rs. 39,375.00
Sale price
Rs. 35,624.00
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Petrol Intercultivator FB-IC-209P
Description:
| CULTIVATOR | Model | FB-IC-209P |
| Dimension (L x W x H) (mm) | 1380 x 650 x 970 | |
| N.W/G.W(kg) | 70/73 | |
| Transmission System | Belt + Chain | |
| Tilling Scope (mm) | 500 - 1000 | |
| Working Dia. (mm) | 300/350 | |
| ENGINE | Engine Model | FB-PE4-169 |
| Type | OHV,Single-cylinder,4-stroke, forced air cooling | |
| Displacement | 196 cc | |
| Bore × stroke | 68 × 54 mm | |
| Compression Ratio | 8.5 : 1 | |
| Rated Output (kW/rpm) | 4.8kW (6.5hp) /3600 | |
| Max. Torque ( nm) | 11N.m/2500rpm | |
| Ignition system | Transistor Magneto | |
| Starting System | Manual Start | |
| Oil capacity | 0.6 L | |
| Fuel tank capacity | 3.6 L | |
| Oil consumption | 395 grams / kWh | |
| N.W./G.W | 15 / 17 kg | |
| Air Cleaner | Oil Bath Filter |
Note for customers:
DO NOT START NEW ENGINE BY YOURSELF.
After receiving the parcel, read manual thoroughly, contact us so we will arrange a technical call for you. Because all engine comes without engine oil and needs necessary precautions before starting the engine.
Guarantee / Warranty is not at all applicable for this product. But we will try our best to resolve the problem for the products which are not covered under Guarantee / Warranty.
