Yash Pumps

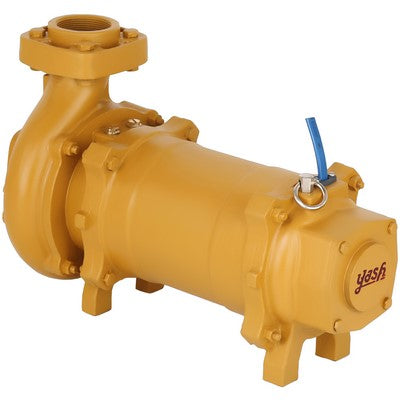

Open Well Submersible 2hp 50x40mm C.I. Body (aluminium Rotor) V-7 YM-231

Open Well Submersible 2hp 50x40mm C.I. Body (aluminium Rotor) V-7 YM-231

Rs. 16,279.00
Rs. 16,699.00 Rs. 16,279.00
विक्री विकले गेले
कर समाविष्ट. शिपिंग चेकआउट करताना गणना केली जाते.

V-7 C.I. BODY OPENWELL SUBMERSIBLE PUMP SET 2.00 H.P. (50X40) SINGLE PHASE (Aluminium Rotor)

YM-231


Approved by ISI

Description:
SALIENT FEATURES
→ Specially designed to start in low voltage and sustain in high voltage fluctuations.
→ High electrical and mechanical efficiency.
→ Higher heat dissipation.
→ Dynamically balanced rotor and other rotating parts for uniform clearance.
→ Specially designed bearing to withstand axial thrust loads.
→ Designed for high voltage fluctuations.
→ Noise free operation.
→ Modular design and all parts are easily interchangeable.
→ Energy Efficient Models.
→ Higher efficiency resulting in lower operating cost.
APPLICATION
→ Agriculture Farm
→ Industries Water Supply
→ Sprinkler & Drip Irrigation
→ Gardens
→ Residential Complex
→ Hospitals
→ Water Treatment Plant
TECHNICAL DATA
MODEL → YM-231
POWER → 1.50 Kw
H.P. → 2.00
STAGE → 01
CURRENT IN AMPS → 13.50
VERSION → SINGLE PHASE 140 TO 240 VOLT
RATED SPEED IN RPM → 2880
FREQUENCY → 50 Hz
CATEGORY → B
DUTY TYPE → S1 (CONTINUOUS)
TYPE → WET TYPE
CONNECTION → PARALLEL (CSCR)
OPERATING DATA
DUTY POINT HEAD → 24 METERS
DUTY POINT DISCHARGE → 240 LPM 14.40 m³/hr
OPERATING HEAD RANGE → 20 TO 30 METERS
OPERATING DISCHARGE RANGE → 295 TO 112 LPM
SUCTION
DELIVERY		 → 50 MM (2.0")
→ 40 MM (1.5")
CORRECT SPEED IN RPM → 2820
MAXIMUM FLOW RATE → 422 LPM 25.32 m³/hr
TOTAL HEAD
MAXIMUM OPERATING PRESSURE		 → 31 METERS
→ 3.10 Bar
MAXIMUM LIQUID TEMPERATURE → 35º
PARTICULARS MATERIALS OF CONSTRUCTION
MOTOR BODY → CI - FG -200
BEARING BUSH → LTB - 4 BRONZE
MOTOR SHAFT → S.S.410
THRUST BEARING → S.S. 420 RING & FIBER PLATE
HOUSING / BACK COVER → CI - FG -200
STAMPING → CRNO - M45
SCREWS / STUDS / OTHER PARTS → S.S. 410 & S.S. 202
IMPELLER
CASING		 → CI - FG - 200
→ CI - FG - 200
WINDING WIRE → E.C. GRADE HIGH INSULATION
ROTOR → ALUMINUM DRY CAST & CRNO - M45


Manufactured, Marketed, and Dispatched by: Yash Manufacturers

Guarantee:
One year Guarantee on manufacturing defects (excluding winding).
Winding is not at all covered in guarantee/warranty clause.
Manufacturer is committed for best after sales services.
For warranty related issue, send email to: info@yashpump.in & cc to: support@kisanestore.in
