Yash Pumps

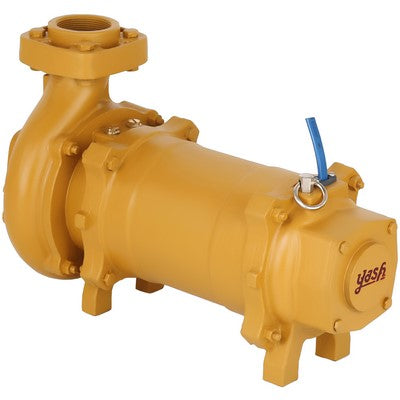

Open Well Submersible 7.50 HP 80x80mm C.I. Body (Copper Rotor) V-8 YM8-7534 / YM8-OPWSP

Open Well Submersible 7.50 HP 80x80mm C.I. Body (Copper Rotor) V-8 YM8-7534 / YM8-OPWSP

Rs. 37,949.00
Rs. 40,841.00 Rs. 37,949.00
বিক্রয় ( ছাড় ) বিক্রি হয়ে গেছে
কর অন্তর্ভুক্ত। পরিবহন চেকআউটের সময় গণনা করা হয়।

V-8 C.I. BODY OPENWELL SUBMERSIBLE PUMP 7.50 H.P. (80X80) THREE PHASE (Copper Rotor)

YM8-7534 / YM8-OPWSP


Approved by ISI


46 BEE( BUREAU OF ENERGY EFFICIENCY) 5 Star Model

Description:
SALIENT FEATURES
→ Specially designed to start in low voltage and sustain in high voltage fluctuations.
→ High electrical and mechanical efficiency.
→ Higher heat dissipation.
→ Dynamically balanced rotor and other rotating parts for uniform clearance.
→ Specially designed bearing to withstand axial thrust loads.
→ Designed for high voltage fluctuations.
→ Noise free operation.
→ Modular design and all parts are easily interchangeable.
→ Energy Efficient Models.
→ Higher efficiency resulting in lower operating cost.
APPLICATION
→ Agriculture Farm
→ Industries Water Supply
→ Sprinkler & Drip Irrigation
→ Gardens
→ Residential Complex
→ Hospitals
→ Water Treatment Plant
TECHNICAL DATA
MODEL → YM8-7534
POWER → 5.50 Kw
H.P. → 7.50
STAGE → 01
CURRENT IN AMPS → 14.50
VERSION → THREE PHASE 250 TO 440 VOLT
RATED SPEED IN RPM → 2880
FREQUENCY → 50 Hz
CATEGORY → B
DUTY TYPE → S1 (CONTINUOUS)
TYPE → WET TYPE
CONNECTION → STAR
OPERATING DATA
DUTY POINT HEAD → 26 METERS
DUTY POINT DISCHARGE → 967 LPM 58.02 m³/hr
OPERATING HEAD RANGE → 14 TO 32 METERS
OPERATING DISCHARGE RANGE → 1530 TO 450 LPM
SUCTION → 80 MM (3.0")
DELIVERY → 80 MM (3.0")
CORRECT SPEED IN RPM → 2860
MAXIMUM FLOW RATE → 1700 LPM 102.00 m³/hr
TOTAL HEAD → 34 METERS
MAXIMUM OPERATING PRESSURE → 3.40 Bar
MAXIMUM LIQUID TEMPERATURE → 35º
PARTICULARS MATERIALS OF CONSTRUCTION
MOTOR BODY → CI - FG - 200
BEARING BUSH → LTB - 4 BRONZE
MOTOR SHAFT → S.S.410
THRUST BEARING → S.S. 420 RING & FIBER PLATE
HOUSING / BACK COVER → CI - FG -200
STAMPING → CRNO - M45
SCREWS / STUDS / OTHER PARTS → S.S. 410 & S.S. 202
IMPELLER → CI - FG - 200
CASING → CI - FG - 200
WINDING WIRE → E.C. GRADE COPPER / HIGH INSULATION
ROTOR → E.C. GRADE COPPER & CRNO - M45

​Manufactured, Marketed, and Dispatched by: Yash Manufacturers

Guarantee:
One year Guarantee on manufacturing defects (excluding winding).
Winding is not at all covered in guarantee/warranty clause.
Manufacturer is committed for best after sales services.
For warranty related issue, send email to: info@yashpump.in & cc to: support@kisanestore.in
