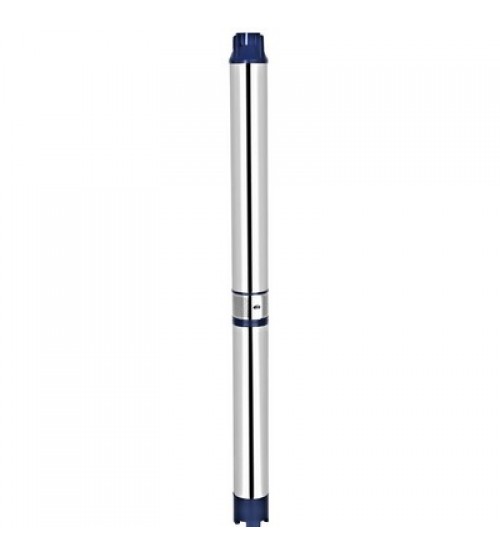

Bore Well Submersible 1.25HP 24 Stage 80mm V-3 YM-3/2

Brand: Yash Pumps

Categories: Single Phase Water Pumps, Bore Well Submersible Pumps, 1.25 HP,

Availability: In Stock

Cash on delivery Availability: NO

Price: Rs 18,599.00 Rs 16,599.00

Qty:

Description

V-3 80MM BORE WELL SUBMERSIBLE PUMP SET 1.25 H.P. 24 STAGE SINGLE PHASE
YM-3/2
Description:

SALIENT FEATURES
→ Corrosion resistant stainless steel body.
→ Specially designed to start in low voltage and sustain in high voltage fluctuations.
→ High electrical and mechanical efficiency.
→ Higher heat dissipation.
→ Dynamically balanced rotor and other rotating parts for uniform clearance.
→ Specially designed bearing to withstand axial thrust loads.
→ Designed for high voltage fluctuations.
→ Noise free operation.
→ Modular design and all parts are easily interchangeable.
→ Energy Efficient Models.
→ Higher efficiency resulting in lower operating cost.

APPLICATION
→ Agriculture Farm
→ Industries Water Supply
→ Sprinkler & Drip Irrigation
→ Gardens
→ Residential Complex - High rise Buildings
→ Hospitals
→ Water Treatment Plant

TECHNICAL DATA
MODEL BORE SIZE			→ YM-3/2 → 80 MM (3")
POWER			→ 0.93 Kw
H.P.			→ 1.25
STAGE			→ 24
CURRENT IN AMPS			→ 10.00
VERSION			→ SINGLE PHASE 140 TO 240 VOLT
RATED SPEED IN RPM			→ 2880
FREQUENCY			→ 50 Hz
CATEGORY			→ B
DUTY TYPE			→ S1 (CONTINUOUS)
TYPE			→ WET TYPE
CONNECTION			→ PARALLEL (CSCR)

OPERATING DATA
DUTY POINT HEAD			→ 78 METERS
DUTY POINT DISCHARGE			→ 25 LPM 1.50 m³/hr
OPERATING HEAD RANGE			→ 58 TO 100 METERS
OPERATING DISCHARGE RANGE			→ 45 TO 15 LPM
OUT LATE			→ 25 MM (1.00")
CORRECT SPEED IN RPM			→ 2790
MAXIMUM FLOW RATE			→ 50 LPM 3.00 m³/hr
TOTAL HEAD MAXIMUM OPERATING PRESSURE			→ 104 METERS → 10.40 Bar
MAXIMUM LIQUID TEMPERATURE			→ 35º

PARTICULARS			MATERIALS OF CONSTRUCTION
MOTOR BODY / PUMP BODY			→ S.S. 202
BEARING BUSH			→ LTB - 4 BRONZE
MOTOR SHAFT / PUMP SHAFT			→ S.S.410
THRUST BEARING			→ S.S. 420 & GRAPHITE CARBON
HOUSING / BASE / NRV / SUCTION			→ CI - FG -200
STAMPING			→ CRNO - M45
SCREWS / STUDS			→ S.S. 410 & S.S. 202
IMPELLER / BOWL			→ NORYL GNF2 TECHNO POLYMER
WINDING WIRE			→ E.C. GRADE HIGH INSULATION
ROTOR			→ E.C. GRADE COPPER & CRNO - M45
PCD CUP			→ NITRILE RUBBER

Guarantee:
One year Guarantee on manufacturing defects (excluding winding).
Winding is not at all covered in guarantee/warranty clause.
Manufacturer is committed for best after sales services.
